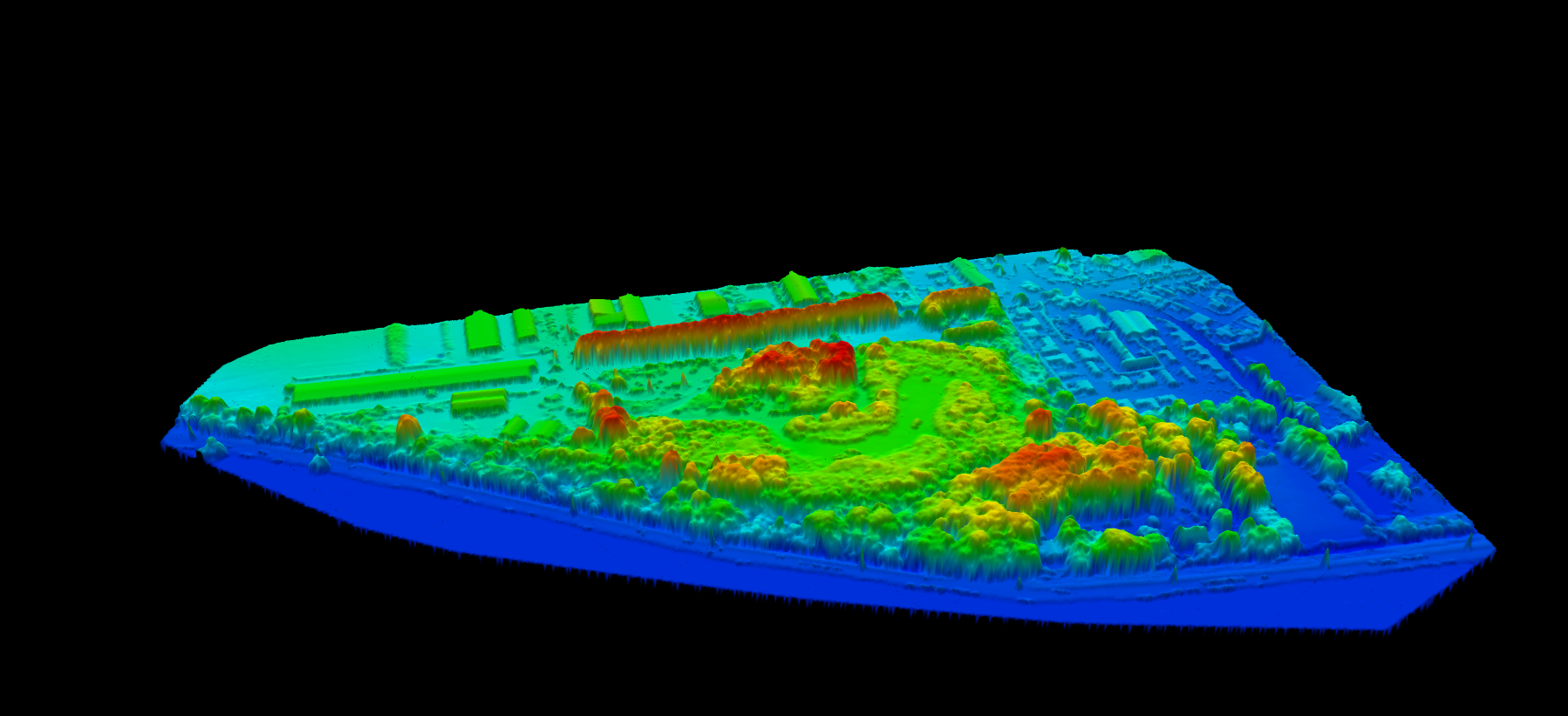

A Digital Surface Model (DSM) is a three-dimensional representation of the Earth’s surface that includes everything visible from above: terrain, buildings, vegetation, bridges, and other structures. Unlike bare-earth models, a DSM captures the “first return” elevations—the highest points that a sensor detects when scanning from above.
Think of a DSM as a snapshot of what you would see if you draped a sheet over a landscape. Every rooftop, treetop, and ground surface appears at its true elevation above a reference datum (typically sea level).
DSMs are stored as raster grids where each cell contains an elevation value, or as triangulated irregular networks (TIN) for more complex representations. Common resolutions range from 30 meters for satellite-derived products down to centimeter-level detail from drone surveys.
Key Characteristics of Digital Surface Models
Understanding what makes a DSM unique helps you select the right elevation product for your project:
- Includes all surfaces: Buildings, vegetation, vehicles, bridges, and other objects appear at their true heights
- First-return data: In LiDAR processing, DSMs use the first (highest) return from each laser pulse
- Raster format: Typically stored as GeoTIFF with each pixel containing an elevation value
- Referenced to datum: Elevations expressed relative to a vertical datum (e.g., WGS84, local geoid)
- Variable resolution: From 30m (satellite) to sub-centimeter (drone LiDAR)
DSM vs DTM vs DEM: Understanding the Differences
The terms DEM, DTM, and DSM are often confused or used interchangeably, but they represent distinct products with different applications.
Digital Surface Model (DSM)
What it captures: All visible surfaces including buildings, trees, vehicles, and terrain.
Best for: Urban modeling, telecommunications planning, forestry analysis, obstacle detection, solar potential analysis.
Digital Terrain Model (DTM)
What it captures: Bare earth only, with all surface objects removed. May include breaklines for ridges, valleys, and drainage features.
Best for: Hydrological modeling, civil engineering, flood simulation, contour line generation, earthworks planning.
Learn more about DTMs in our complete Digital Terrain Model guide.
Digital Elevation Model (DEM)
What it captures: Generic term for any elevation dataset. In practice, often used synonymously with DTM in the United States.
Best for: General elevation reference, slope analysis, viewshed calculations.
Quick Comparison Table
| Feature | DSM | DTM | DEM |
|---|---|---|---|
| Includes buildings | Yes | No | Varies |
| Includes vegetation | Yes | No | Varies |
| Shows bare earth | No | Yes | Varies |
| Used for hydrology | Rarely | Yes | Yes |
| Used for urban planning | Yes | Rarely | Varies |
The Normalized DSM (nDSM)
A normalized Digital Surface Model (nDSM) represents object heights above the ground rather than absolute elevations. It’s calculated by subtracting the DTM from the DSM:
nDSM = DSM – DTM
The nDSM is particularly valuable for:
- Measuring building heights for urban density analysis
- Calculating tree canopy heights (Canopy Height Model – CHM)
- Estimating vegetation biomass for forestry applications
- Identifying above-ground obstructions for flight planning
How Digital Surface Models Are Created
Several technologies can generate DSMs, each with distinct advantages and limitations:
LiDAR (Light Detection and Ranging)
LiDAR is the most accurate method for DSM generation. Airborne or drone-mounted laser scanners emit millions of pulses per second, measuring distances to create dense point clouds.
Advantages:
- Centimeter-level vertical accuracy
- Works in low-light conditions
- High point density captures fine detail
- Multiple returns separate canopy from ground
- Penetrates vegetation to capture ground underneath
The LiDAR workflow for DSM creation involves:
- Data acquisition: Drone or aircraft collects point cloud data
- Point cloud classification: Points labeled as ground, vegetation, building, etc.
- Surface generation: Interpolation creates continuous raster surface
- Export: DSM saved as GeoTIFF or other raster format
Photogrammetry (Stereo Imagery)
Overlapping aerial or satellite photographs enable 3D reconstruction through stereo matching algorithms.
Advantages:
- Lower cost than LiDAR for large areas
- Captures RGB color information alongside elevation
- Wide availability of satellite imagery
Limitations:
- Cannot penetrate vegetation (no ground under trees)
- Requires good lighting conditions
- Struggles with uniform textures (water, sand)
Synthetic Aperture Radar (SAR)
Radar satellites like Sentinel-1 and TerraSAR-X generate elevation data through interferometric techniques.
Advantages:
- Works through clouds and at night
- Consistent global coverage
- Large area mapping capability
Limitations:
- Lower resolution than LiDAR or optical methods
- Complex processing requirements
- Affected by geometric distortions in steep terrain
Digital Surface Model Applications
DSMs serve critical roles across multiple industries:

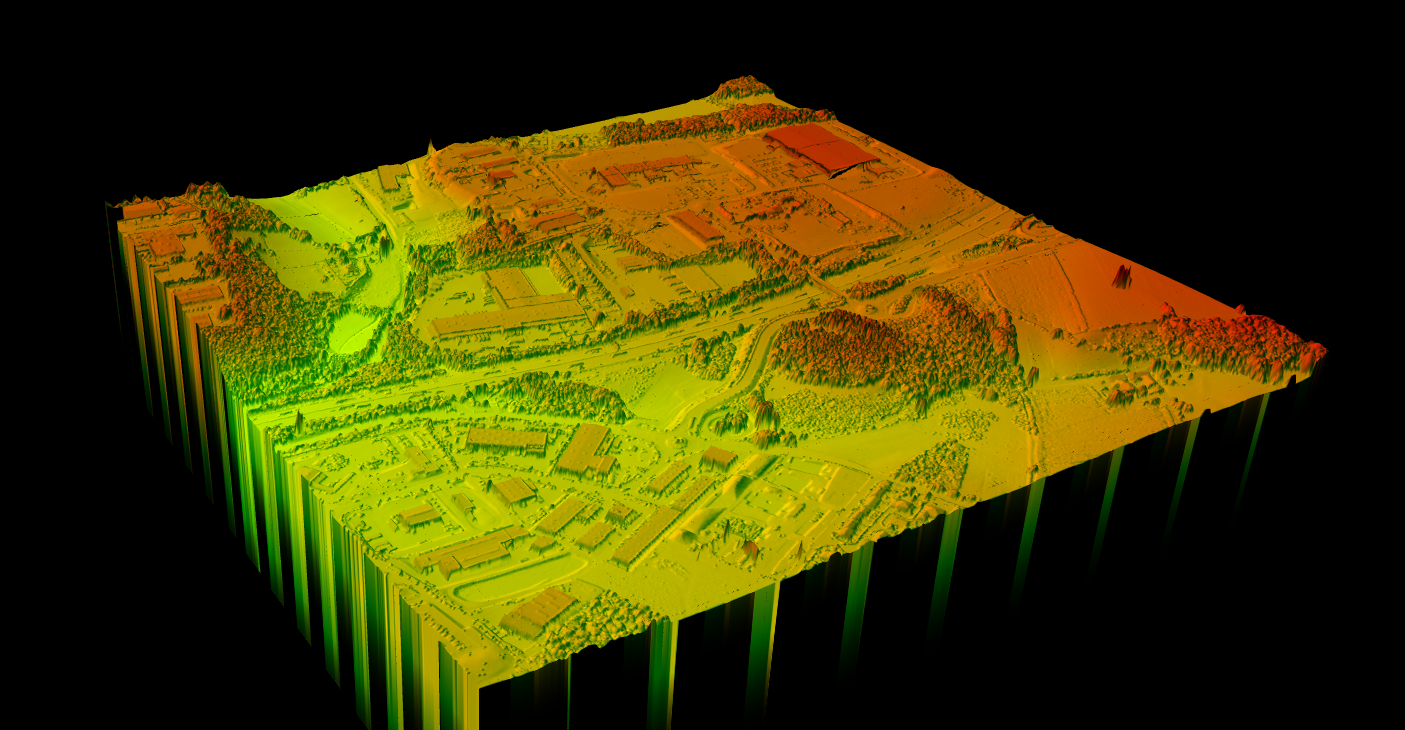

Urban Planning and Development
City planners use DSMs to understand the three-dimensional urban fabric:
- Building height regulations and compliance
- Shadow analysis for new construction
- Density assessment and zoning
- View corridor protection
- 3D city modeling for visualization
Telecommunications Network Planning
DSMs are essential for wireless network design:
- 5G and LTE tower placement optimization
- Microwave link line-of-sight analysis
- Coverage prediction and optimization
- Interference analysis from buildings and terrain
Forestry and Vegetation Management
Forest managers rely on DSMs combined with terrain models for comprehensive vegetation analysis:
- Canopy height mapping (using nDSM/CHM)
- Biomass estimation for carbon accounting
- Fire risk assessment based on fuel loads
- Harvest planning and volume estimation
- Utility vegetation management and clearance analysis
Solar Energy Analysis
DSMs enable accurate solar potential assessment:
- Rooftop solar feasibility analysis
- Shadow modeling throughout the day and year
- Energy yield estimation
- Solar farm site selection
Aviation and Flight Planning
Obstacle clearance is critical for aviation safety:
- Obstacle identification for airport approaches
- Drone flight corridor planning
- Terrain awareness and warning systems (TAWS)
- Low-level flight route planning
Construction and Engineering
DSMs support construction projects by showing existing conditions:
- Site surveys including existing structures
- Progress monitoring (comparing successive DSMs)
- Volume calculations for excavation and fill
- As-built documentation
DSM Resolution and Accuracy
DSM resolution determines what features can be detected. Higher resolution captures finer detail but increases file sizes and processing requirements.
Resolution by Data Source
| Data Source | Typical Resolution | Detectable Features |
|---|---|---|
| Satellite (SRTM, ASTER) | 30m | Major landforms, large buildings |
| Aerial Photogrammetry | 5-10m | Individual buildings |
| Aircraft LiDAR | 1-2m | Building details, large trees |
| Drone LiDAR | 0.1-0.5m | Roof structures, small vegetation |
Vertical Accuracy
Vertical accuracy depends on the acquisition method and processing quality:
- Satellite stereo: 2-5m RMSE
- Aerial photogrammetry: 0.5-2m RMSE
- Airborne LiDAR: 0.05-0.15m RMSE
- Drone LiDAR with GCPs: 0.03-0.10m RMSE
Creating DSMs with Lidarvisor
Lidarvisor simplifies DSM generation from LiDAR point clouds:
- Upload: Submit your LAS or LAZ point cloud file
- Automatic classification: Points classified into ground, vegetation, buildings, and more
- DSM generation: First-return surface model created automatically
- Download: Export as GeoTIFF ready for GIS analysis
The same process generates both DSM and DTM products, along with hillshade visualization for easy interpretation.
Frequently Asked Questions
What is the difference between DSM and DTM?
A DSM includes all visible surfaces like buildings and trees, while a DTM shows only the bare ground with all objects removed. Use DSM when surface features matter (urban planning, telecom); use DTM for terrain analysis (hydrology, engineering).
How accurate is a DSM?
Accuracy depends on the acquisition method. LiDAR-derived DSMs achieve 5-15 cm vertical accuracy. Photogrammetric DSMs from aerial imagery typically reach 0.5-2 m accuracy. Satellite-derived DSMs have 2-5 m accuracy or more.
Can I create a DSM from drone imagery?
Yes. Drone photogrammetry or drone LiDAR both produce high-quality DSMs. Photogrammetry requires 70-80% image overlap and processing through structure-from-motion software. Drone LiDAR provides higher accuracy and works under vegetation.
What file format are DSMs stored in?
DSMs are typically stored as GeoTIFF files—georeferenced raster images where each pixel contains an elevation value. Other formats include ASCII grid, ESRI Grid, and various proprietary formats. Lidarvisor exports DSMs as standard GeoTIFF files compatible with all major GIS software.
How do I choose between DSM and DTM for my project?
Ask what you need to analyze:
- Need to see buildings and trees? Use DSM
- Need bare ground for drainage/grading? Use DTM
- Need object heights (building height, tree height)? Use both, calculate nDSM
Conclusion
Digital Surface Models provide essential three-dimensional context for applications ranging from urban planning to telecommunications to forestry. Understanding the distinction between DSM, DTM, and DEM helps you select the right product for your project needs.
Modern LiDAR technology enables rapid, accurate DSM generation at resolutions that capture individual buildings and trees. Cloud-based processing platforms like Lidarvisor simplify the workflow, transforming raw point clouds into analysis-ready elevation products in minutes.
Ready to generate a DSM from your LiDAR data? Create a free Lidarvisor account and upload your LAS or LAZ file. You’ll receive both DSM and DTM products with hillshade visualization, ready for GIS analysis.
