What Are Contour Lines?

Contour lines are imaginary lines connecting points of equal elevation across a terrain surface. Each line represents a specific height above a reference datum, typically sea level. The spacing between contour lines indicates slope steepness: closely spaced lines mean steep terrain, while widely spaced lines indicate gentle slopes.

Contour maps have been used for centuries, but LiDAR technology brings unprecedented accuracy and detail. Where traditional surveying might capture a few hundred points per hectare, LiDAR collects millions, enabling contour accuracy measured in centimeters rather than meters.

🏔️

Topographic Maps

Visualize terrain shape and slope

🏗️

Civil Engineering

Site grading, drainage, earthworks

📐

Land Surveying

Boundary surveys, volumetrics

🌊

Hydrology

Watershed delineation, flood modeling

Traditional Methods vs. LiDAR

Traditional Surveying

Time-consuming — days or weeks for large sites

Expensive — labor and equipment costs

Sparse data — limited point density, interpolation required

Weather-dependent — field work delays

LiDAR-Derived Contours

High density — millions of ground points for accurate terrain

Fast collection — drone LiDAR covers large areas in hours

Accurate — vertical accuracy of 5-15cm achievable

Complete coverage — no interpolation gaps

Bare-earth — see through vegetation to true ground

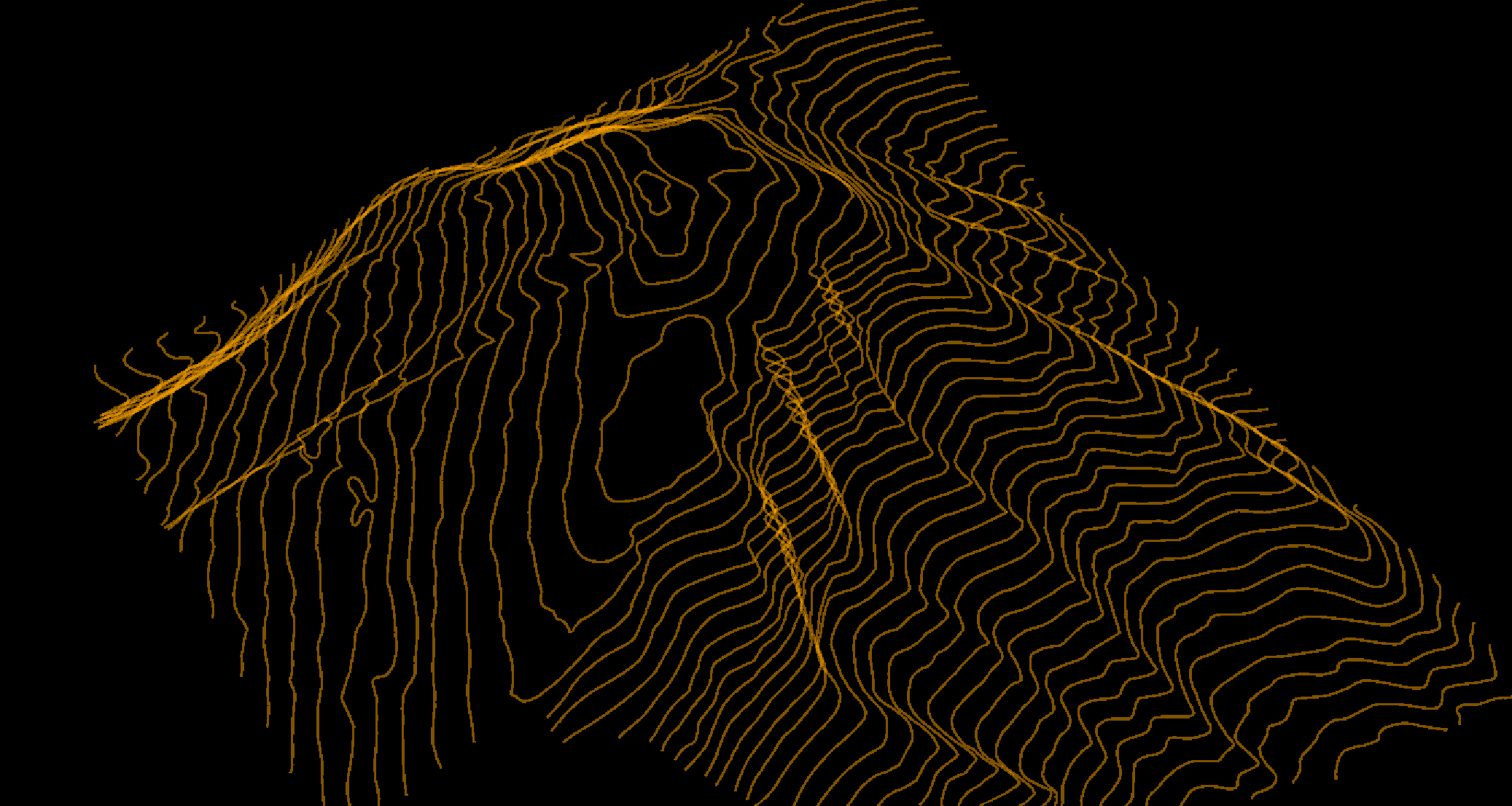

Lidarvisor - Contours

BARE-EARTH MAPPING

The LiDAR Advantage

See through vegetation to true ground surface

Through proper point cloud classification, LiDAR contours represent the bare-earth surface beneath vegetation. Unlike photogrammetry that only captures what is visible from above, LiDAR laser pulses penetrate gaps in vegetation canopy to reach the ground.

Penetrates forest canopy gaps

Classifies ground vs vegetation

True terrain regardless of vegetation cover

The Challenge: Point Cloud to Contours

Raw LiDAR point clouds contain everything: ground, buildings, trees, vehicles, and noise. To generate accurate contours, you need a proper workflow that separates true terrain from everything else.

01

Classify Ground

Separate true terrain from vegetation (low, medium, high), buildings, water, and other objects. Poor classification leads to contours that jump between ground level and vegetation height.

02

Create DTM

Generate a Digital Terrain Model from classified ground points. This continuous bare-earth surface is the foundation for contour extraction. Resolution matters: finer captures more detail.

03

Generate Contours

Extract contour lines at specified intervals. Major contours (5m or 10m) with elevation labels, minor contours (1m or 2m) for detail. Interval choice depends on terrain steepness.

04

Export to CAD

Deliver in DXF for AutoCAD and Civil 3D, SHP for ArcGIS and QGIS, or GeoJSON for web mapping and programmatic workflows.

AUTOMATED WORKFLOW

How Lidarvisor Generates Contours

AI-powered classification and extraction in minutes

Lidarvisor uses AI-powered classification to automatically process your point cloud and extract contour lines.

Upload your LAS/LAZ file — any drone or airborne LiDAR

Automatic ground classification with AI

DTM generation from classified points

Contour extraction at custom intervals

Download DXF, SHP, or GeoJSON

Lidarvisor - Point Cloud Classification

Contour Export Options

Format Use Case
DXF AutoCAD, Civil 3D, MicroStation — standard CAD deliverable
Shapefile (SHP) ArcGIS, QGIS — standard GIS format
GeoJSON Web mapping, programmatic workflows

Best Practices for LiDAR Contours

straighten

Choose Appropriate Intervals

1m for detailed site work, 5m for regional mapping. Match interval to terrain steepness and intended use.

verified

Verify Ground Classification

Spot-check that vegetation is removed from terrain. Poor classification causes contour artifacts.

terrain

Use DTM, Not DSM

Contours must represent bare earth, not surface with trees and buildings.

Industry Applications

📐

Land Surveying

Topographic surveys, ALTA/NSPS

🏗️

Civil Engineering

Site grading, cut/fill calculations

🌲

Forestry

Terrain analysis under canopy

🌊

Hydrology

Watersheds, flood zones

⛏️

Mining

Pit design, stockpile volumes

🌾

Agriculture

Drainage planning, irrigation design

Frequently Asked Questions

For detailed site work, 1m or 2m intervals are typical. For regional mapping or steep terrain, 5m or 10m intervals reduce visual clutter. Match the interval to terrain steepness and your project requirements.

Jagged contours usually indicate poor ground classification — the contours are following vegetation or noise points instead of true ground. Verify your classification separates ground from low vegetation, and consider applying smoothing to your DTM.

Always use DTM (Digital Terrain Model) for topographic contours. DTM represents bare-earth elevation, while DSM includes buildings, trees, and other surface features. DSM contours would show building rooftops and tree canopy heights, not true terrain.

Yes, but with limitations. Photogrammetry captures visible surfaces only, so in vegetated areas you’ll get canopy-level contours, not bare-earth terrain. LiDAR penetrates vegetation to capture true ground elevation, making it superior for terrain mapping in forested areas.

With quality drone or airborne LiDAR data, vertical accuracy of 5-15cm is achievable. This translates to contour accuracy meeting or exceeding traditional survey standards. Accuracy depends on LiDAR hardware, flight parameters, ground control, and classification quality.
